Standard Garage Door Sizes For Homes: A Guide to Garage Dimensions

TL;DR

• Standard garage door sizes vary based on single, double, and triple-car configurations.
• Single-car doors typically range from 7×8 to 8×9 feet, while double-car doors are 16-18 feet wide and 7-9 feet tall.
• Triple-car doors range from 20 to 32 feet in width and 7-9 feet in height.
• RV garage doors are larger, typically 10-12 feet wide and 10-14 feet tall.

---





When purchasing a replacement garage door or adding one to a new home, it’s important to understand standard garage door sizes. Given the variety in dimension combinations, it’s difficult to label any one option as a standard garage door size, but some sizes are certainly more common than others.  Below we will cover the standard garage door size based on height and width.

Before you can install a new garage door, first you need to know the right size. Fortunately, garages typically come in standard sizes, so you can easily select your garage door based on common dimensions. We’re here to take you on a tour of common garage door sizes, including single garage door size, double garage door size, and even triple garage door dimensions to help you choose.

All you need are your garage door measurements to determine height and width, and you’re ready to start the selection process.

What Are the Standard Garage Door Sizes?

The standard garage door sizes align with the typical sizes of garages and their front apertures. Single-car garages and double-car garages naturally have different standard garage door dimensions, and even these can vary in garage door width or length. Triple-car garage doors are somewhat unique, but even they adhere to standard sizing most of the time.

Garage Door Design Options

The garage door size you need depends on the size and layout of your garage itself. Blueprints for garages vary from small spaces designed for a single vehicle to larger, standard 2 car garage door sizes, to multiple-vehicle options.

If you bought an existing home, this decision had likely already been made for you. But, when building or remodeling a home, several factors must be considered, including:

• Personal preference, style, and needs are based on a number of vehicles.
• Aesthetics and how the garage façade will affect the appearance of your home.
• Practicality and the cost of maintaining multiple doors and an opener system.

If you’re unsure about the right garage door size for your home or need garage door repair Albuquerque or anywhere else, professionals can help ensure that your installation is a perfect fit for your needs.

Standard Garage Door Sizes Based on Height & Width

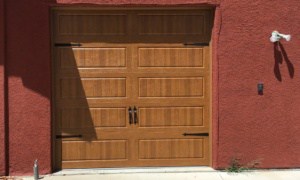

•  7-8 feet high by 8-10 feet wide for a single garage door

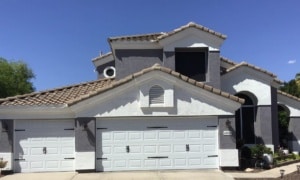

•  7-8 feet high by 16-18 feet wide for a double garage door

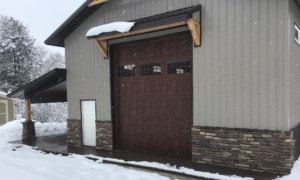

• 10-14 feet high by 10-14 feet wide for a RV garage door

What Should You Consider When Choosing a Garage Door Size?

1. Vehicle Fit: Make sure your vehicle can fit through the dimensions of the garage door comfortably and maneuver with ease.
2. Functionality: Ensure the size of your garage door provides ample functionality in the space.
3. Style: Choose a style of garage door that is enhanced by the style. Some styles look better in expansive or compact architecture.
4. Cost: The size of your garage door directly impacts the cost, as the materials needed for the price baseline.
5. Climate: Choosing smaller doors may be more energy-efficient and practical in your climate, while larger doors are more welcoming in mild, breezy climates.

What Are the Average Costs for Different Garage Door Sizes?

The size of your garage door and the material determine the baseline cost. After all, the size dictates how much material you need to properly cover and secure your garage aperture. Let’s take a look at the cost of garage doors by size.

1. Single Car Garage Doors: $1,000 – $3,000 depending on your choice of materials and features.
2. Double Car Garage Doors: $2000 – $5,000 based on dimensions, material, and style.
3. Triple Car Garage Doors: $3,000 – $5,000+, with wide variation depending on whether it represents multiple doors or one large door.

Garage Door Openers for Different Sizes

Not all garage door openers can handle the same load. Larger garage doors are heavier and inherently harder to control. That is why it is essential to choose the right garage door opener based on this factor. Consider the garage door opener options, including the horsepower for each engine rating.

Consult with your installer to learn exactly what type of garage door opener you need to suit your plans.

Custom Garage Door Sizes

Most garages have standard-sized apertures for standard-sized garage doors. Of course, you may be dealing with a unique situation or an opportunity for truly unique custom garage doors. Explore the possible custom garage door dimensions for non-standard garage door sizes and proportions.

When Do You Need a Custom Garage Door?

The ideal situation for a custom garage door is when your garage is notably larger or smaller than the standard sizes. You can also renovate and go all-out for extra vertical space.

Custom vs Standard Sizes: What’s the Difference

There are already thousands of garage door types and styles in a variety of materials and finishes in standard sizes. This makes it easier to shop just for the aesthetic qualities and price range you want. Custom garage door sizes must be made to order.

Cost Considerations for Custom Garage Door Sizes

Remember that custom garage doors are almost always more costly than a premade style. However, they also offer superior potential for personalized style and the ability to meet the needs of unique properties.

What Are the Trends in Garage Door Sizes?

Garage doors are a surprisingly trendy topic because they transform a home’s curb appeal and contribute to both security and energy efficiency. These trends include architectural styles, multi-purpose design, personalized styles, and climate attenuation.

• Increasing Popularity of Two-Car Garages: Most households are two-car households, so it’s only natural that two-car garages have begun leading the race.
• Multipurpose Use of Garages: Garages are versatile, and your garage door should be, too. This is why we offer easy-to-use control, frosted glass windows, and more.
• Customized Sizes for Style and Functionality: You can explore the possibility of custom garage door sizes based on the total space you need to secure. Not all garage doors have to be the same size.
• Impact of Climate on Garage Door Sizes: An insulated garage door not only keeps the garage more comfortable, but it can also improve energy efficiency by not impacting the home.

How to Measure Your Garage Door



If you’re considering purchasing a new garage door, we’re happy to visit and measure your door to ensure you’re looking at the right options. But, if you’re the do-it-yourself type, here are step-by-step instructions for measuring your garage door and ensuring your garage can accommodate an opener and the door in both the open and closed positions.

img src=”https://a1garage.com/wp-content/uploads/2021/06/Measure-Your-Door-copy-300×214.jpg” alt=”” class=”alignright wp-image-10339″ width=”450″ height=”321″ />

1. – called the “rough opening” – to the closest inch. This will be approximately the same size as your door.
2. Measure the space to the left and right of the opening – called the “sideroom.” Most vertical track systems require 3.75 inches on each side. Some systems require even more space, at 5.5 inches.
3. Measure the distance between the top of the opening and the ceiling – called the “headroom.” Standard systems require 12 inches of headroom, and most openers require an additional 3 inches of clearance.
4. Measure the distance from the garage door opening to the back wall of the garage – called the “backroom.” You will need backroom equal to the door height plus 18 inches, possibly more based on opener installation.

Contact A1 Find the Perfect Garage Door Size for Your Home Today!

You don’t have to guess the right size of your garage door to get the perfect fit. A1 Garage Door Service will send a service technician to your home to take precise measurements and ensure your new garage door is exactly the right size. Contact your installer for a pro to right-size your garage door and help you meet all your home’s needs for garage door installation.

Standard Garage Door Size Chart

Most garages have a standard-sized aperture for the garage door. Understanding standard sizes can help you choose a garage door that meets the needs of your home and suits your price range. This garage door size chart arranges common heights and widths of garage doors.

	Common Heights	Common Widths
Single Doors	7 or 8 feet	8, 9, or 10 feet
Double Doors	7 or 8 feet	16 or 18 feet
RV Doors	10, 12, or 14 feet	10, 12, or 14 feet
Notes	Door heights available in 3-inch increments, aside from 7-feet, 3-inches	Door widths available in 2-inch increments
