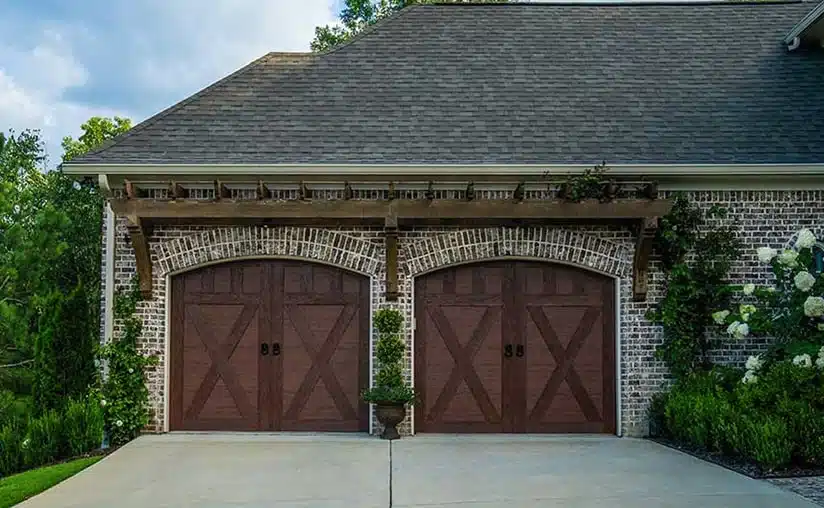

Canyon Ridge® Carriage House (4-layer) Garage Doors

Clopay Canyon Ridge^® Carriage House (4-Layer) garage doors bring together the carriage house designs of the past and today’s technology, functionality and energy efficiency. These doors are constructed with steel for strength and durability, and molded composite overlays for beauty and realism. These doors feature:

• 4-layer construction: steel + insulation + steel + composite overlay.
• Faux wood-look composite overlay available in Clear Cypress for Ultra-Grain^® color options and in Mahogany for solid colors.
• Colors include: Ultra-Grain Walnut, Ultra-Grain Medium, Ultra-Grain Slate, Black, White, and Primed.
• 2″ Intellicore^® polyurethane insulation with a thermal break. R-Value of 18.4.
• WINDCODE^® door reinforcement product available for high wind load applications.

Environmental Assurance

Clopay doors are compliant with environmental laws and regulations. Clopay doors do not contain HFCs. All Clopay doors are compliant with:

• California SB 1013
• Washington HB 1112 – Hydrofluorocarbon Greenhouse Gas Emissions
• Canadian regulations amending the ozone-depleting substances and halocarbon alternatives regulations
• New Jersey A-5583/S-3919 – Greenhouse Gas Bill

Door Designs

Customize your Clopay® Canyon Ridge® Carriage House (4-Layer) garage door to make it your own. Designs, colors and windows create the perfect look. If you are in search of more color options, our ColorBlast® program allows you to select from hundreds of Sherwin-Williams® color options or mix the perfect custom color.

SERIES 1

SERIES 2

SERIES 3

Top Sections

SOLID TOP SECTIONS

WINDOW DESIGNS

DOUBLE TOP SECTIONS

ARC1A – SOLID (Double Door)

ARC1A – WINDOW (Double Door)

ARC3A – WINDOWS (Double Door)

ARC4A – WINDOWS (Double Door)

ARC13A – WINDOWS (DOUBLE DOOR)

ARC14A – WINDOWS (DOUBLE DOOR)

Specialty Glass Options

Clear, tempered glass is standard unless otherwise specified.

Note: Impact rated windows available only in clear.

Material Options

STEEL BASE DOOR MATERIALS

Ultra-Grain® Finish Clear Cypress or Solid Color Steel

COMPOSITE OVERLAY MATERIALS

Mahogany

Clear Cypress

Colors

Custom color available through ColorBlast® program.

Hardware Designs

HANDLES

• Door sample shown in Medium Finish.
• Replaceable vinyl bottom weather seal in rust free aluminum retainer helps protect against the elements.
• High performance nylon ball bearing rollers help ensure smooth, long-lasting, quiet operation.
• Heavy-duty 14 gauge steel hinges and brackets for smooth and worry-free operation.
• Window grilles are removable for easy cleaning.
• Safe-T-Bracket® – Prevents serious injury that could occur if the bottom bracket were removed with the garage door closed and under tension.
• Rust-Prevention System – Steel skins are protected through a tough, layered coating system, including a hot-dipped galvanized layer, a protective metal oxide pretreatment and a baked on primer and top coat.
• Product complies with 2015 IECC air infiltration requirement of 0.40 cfm/ft2 or less (IECC, Section C402.5.2)
